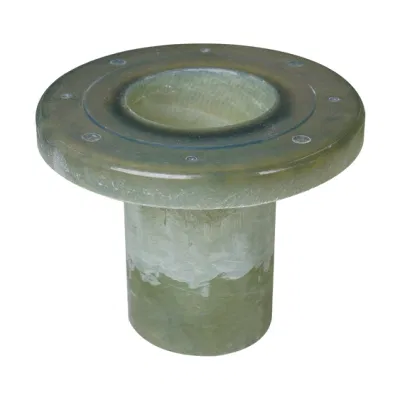

High Performance FRP Flange for Critical Pipe Connections

Looking for high performance FRP flange for critical pipe connections? Look no further! We are a factory specializing in producing top-quality FRP flanges.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
Overview

Basic Info.

Model NO.
GN-FRP FL
Length
Customized
Joint
Bell and Spigot or Coupling
Process
Filament Winding
Transport Package
Standard Package
Specification
DN10mm-DN600mm
Trademark
GuNai
Origin
Shanghai
HS Code
3926909090
Production Capacity
60000t/Year

Product Description

Product Description

FRP/GRP/GFRP/Fiberglass/composite flange
FRP flange is a kind of detachable connecting part, be widely used to FRP pipe and tank.
As a new type of composite, FRP flange is featured by compression resistance, easy installation, low cost, beautiful appearance and multiple choices of resins.
The FRP flanges are reliable and safe after high temperature curing and pressure test. We can make various sizes of FRP accessories such as FRP flange and FRP blind flange per client's requirements, meeting the anti-corrosive, pressure and medium requirements from different industries like petroleum, chemical, power, ship, etc.

Product Parameters
D 0.6MPa 1.0MPa 1.6MPa
S L S L S L
10 12 100 15 100 15 100
15 12 100 15 100 15 100
20 12 100 15 100 18 100
25 12 100 18 100 20 100
32 15 100 18 100 22 100
40 15 100 20 100 25 100
50 15 100 22 100 25 150
65 18 100 25 150 30 160
80 18 150 28 160 30 200
100 20 150 28 180 35 250
125 22 200 30 230 35 300
150 25 200 32 280 42 370
200 28 220 35 360 52 500
250 30 280 45 420 56 620
300 40 300 52 500
350 45 400 60 570
400 50 420
450 50 480
500 50 540
600 50 640
High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections High Performance FRP Flange for Critical Pipe Connections
FAQ

1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!

2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!

3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.

4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.

5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
