High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe

Get the best quality stainless steel water boilers and flexible pipes from our factory. We offer wholesale prices and ensure high quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
  • Our Advantages
  • Product Series
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
TW-10-50
Fuel
Water and Gas
Range of Applications
Water Boiler
Type
Water Boiler
Material
SS304, SS316L
MOQ
30 Meters
Application
Water Boilers, Heat Pumps
Sea Port
Shanghai
Transport Package
Sea & Air Transportation
Specification
DN10-DN50
Trademark
Taihe & OEM
Origin
China
HS Code
830710
Production Capacity
5 Millon Meters

Product Description


Product Description

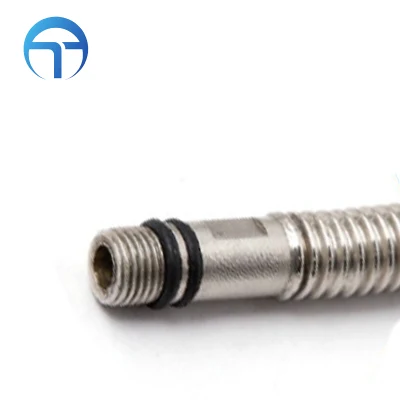

Factory Wholesale Multi-size stainless steel water boiler Stainless Steel Flexible Pipe

    One of the most popular applications of CSST (Sainless steel corrugated tube) is heat transfering, either for heating or cooling. The special corrugations will provice more area which will improve the heat tranferring efficiency. And the structure is easy to bend.These hoses have a longer life at high pressures due to their high wall thickness, and high quality material SUS304 or SUS316L.

High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe






Product Parameters
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
Item No. Model Outer Diameter  (mm) Inner Diameter
(mm)
Pitches
(mm)
Thickness
(mm)
1 DN4 6±0.1 4.2±0.1 1.6±0.1 0.18
2 DN6 9.5±0.1 6.2±0.1 1.95±0.1 0.18
3 DN8 11±0.1 7.8±0.1 2.7±0.1 0.18
4 DN10A 13.6±0.1 9.8±0.1 2.7±0.1 0.20
5 DN10B 13.4±0.1 9.9±0.1 3.1±0.1 0.20
6 DN12 16.2±0.1 11.6±0.1 3.1±0.1 0.15
8 DN13A 16.2±0.1 11.8±0.1 3.1±0.1 0.20
7 DN13B 16.1±0.1 12.6±0.1 3.9±0.1 0.25
9 DN13C 16.9±0.1 13.2±0.1 4.5±0.1 0.25
10 DN15A 18.6±0.2 14.7±0.2 3.9±0.2 0.25
11 DN15B 19±0.1 14.2±0.1 2.8±0.1 0.25
13 DN18A 22±0.1 17.6±0.1 4.9±0.1 0.25
14 DN18B 22.5±0.1 17±0.1 3.5±0.1 0.25
15 DN20 25.3±0.1 20.1±0.1 4.6±0.1 0.25
16 DN25B 31.8±0.2 26±0.2 4.7±0.1 0.25

       As a big CSST factory, we have developed above 16 different sizes tubes below DN25. Also we can producte big size hoses like DN32,DN40, DN50; and big size bellows from DN50 to DN400.
      And of course our professional team can customize new sizes per sample's or technical drawing's request.




Company Profile

High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe



    Wuhu Taihe Pipe Industry Co., Ltd. is a professional CSST manufacturer, who is concerned with the development and production of stainless steel flexible corrugated hoses for fuel and water supply. Located in Wuhu city Anhui Province with convenient transportation access, our factory covers an area of 60000 square meters, and have around 500 employees.

    Founded in the year of 2007, Taihe have been specialized in the industry for over 1 4 years. Our main products are SUS304 and SUS316L corrugated hoses, PVC jacket flexible hoses, metal flexible braided hoses, expansion bellows, fittings and tools for over 17 years.
With more than 80 advanced production lines, our factory has daily production capacity of 15 million meters flexible hoses. The well-equipped facilities and strict quality control Procedures throughout all stages of production enable us to guarantee total customer satisfaction.

    In addition, R&D group and CNAS approved test lab are giving us great supports for new product development and improvement. We have gained IS09001, IS014001, EN14800 certificates approved and hold 57 patents.

    We warmly welcome friends from home and abroad to visit our Taihe factory and therefore build a healthy partnership for mutual development.



Our Advantages
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe

        Over 80 Advanced Production Lines                            100% High Accurancey Helium Leakage Test                               Up to 1080 ºC  Annealing  Treatment




High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe

                 Wonderful Plasitc Coating                                                        Strict Performance Test                                              Professional Team & Sales Network

Product Series
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe

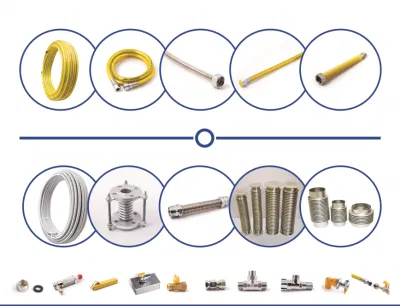

    Apart from heat tranferrring hoses, Taihe factory can also produce stainless steel flexible hoses for water heaters, water purifiers andstoves, expansion bellows and joints, SS braided flexible hoses, vacuum bellows, as well as accessories like valves, couplings and tools.

  We are devoting to provide one-stop service for the clients worldwide.


Certifications



    We have passed ISO19001 quality & ISO14001 environment certifications, and AGA certificate for Australia water hose market, EN14800 & EN15266 for European gas hose market.
High Quality Wholesale Stainless Steel Water Boiler Stainless Steel Flexible Pipe




FAQ

Q1: What is the MOQ for trial orders?
A1: Any quantity is OK for normal and stock products. MOQ for new products will be decided by the size and material, usually 1000 meters or 1000 pcs.

Q2: What is the lead time for trial orders?
A2: 3 days for normal and stock products, and 30 days for customization service.

A3: Where are  your main markets located?
Q3: We have exported to European market UK, Italy, Spain, Germany, Turkey, Russia; American market: USA, Dominica; Asia maket: Israel, South Korea,Singapore; Australia market: Australia, New Zealand; African market: South Africa, Nigeria.

And we are expecting chances to cooperate with any other new markets.
