Basic Info.
Model NO.
API 5L ASTM A106 A53 Gr. B
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decoration
Section Shape
Round
Loading Port
Tianjin, Qingdao, Shanghai, etc.
Certificates
Mtc, Coc, Pvoc, SGS, BV, CE, etc.
Payment
30% T/T, 70% T/T
Shipment Time
Within 15-20 Workdays After Receiving Deposit or L
Transport Package
Shipping Land Transport Express
Specification
Customized
Trademark
GZ STEEL
Origin
Shandong, China
Production Capacity
10000 Tons Per Month
Product Description

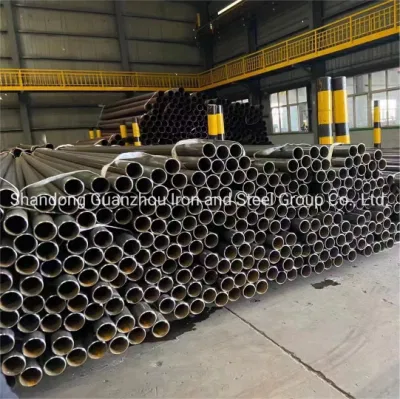

Seamless pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.
1. Steel tubing is a hollow steel shape intended for structural purposes and made from carbon, stainless, or galvanized steel further divided as:
· Mechanical Tubing is used in low stress applications such as fences, kitchens, restaurants, hospitals, solar panels and made with wall thicknesses up to 10 gauge.
· Structural Tubing is for high stress structural application like bridges, buildings, roll cages, and underwater platforms with wall thickness from 3/16" and up. It is often referred to as Hollow Structural Sections or just the acronym HSS.
2. Pipe is a hollow structure that is intended to carry material such as liquids, gasses, or even solids. Its wall thickness is described by its Schedule and it is often broken down by type using the method of manufacturing it, either ERW or Seamless.
Seamless pipe (and tubing) is made by extruding a steel block or by drilling a solid steel bar. Next, the extrusion or the drilled steel bar is cold drawn through a dye to achieve the diameter and thickness needed. Because this process can cause mechanical hardening, sometimes the material is annealed and straightened as a final process. Seamless Pipe & Tubing is subdivided as:
Cold Drawn Seamless, or CDS, exhibits precise tolerances and a good surface finish.
Hot Finished Seamless, or HFS, has less critical tolerances and somewhat scaly finish and is not as strong as CDS.
| Standard | API, ASTM, BS, DIN, GB, JIS |
| Outer Diameter | 21.3mm-660mm |
| Wall Thickness | 0.5mm-20mm |
| Dia Tolerance | Control with in the standard, OD:±1%, WT:±10% |
| Materials | 10#, 20#, 45#, Q235, Q345, Q195, ASTM A53/ A106/ A178/ A333/ A335, SAE1018, SAE1020, SAE1045, ST37, ST37-2, ST35, ST45, ST52, ST35.8, 19Mn5, 16Mn, SS400, Q345B, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo |
| Zinc coating | Pre galvanized steel pipe: 60-150g/m² Hot dipped galvanized steel pipe: 200-400g/m² |
| Type of pipe coating | Epoxy powder |
| Inspection | ISO, BV, SGS, MTC |
| Packing | Steel strip packed. Standard Export Seaworthy Package. Suit forall kinds of transport, or as required |
| Application | Accessorize, machinery parts, structure steel pipe, piling pipe, sewage and clear water transportation, Line pipe for petroleum and so on |
| MOQ | 5metric ton,sample order accepted |
| Shipment time | Within 7-10 workdays after receiving deposit or L/C |
| Market | Southeast Asia, Middle East, Africa, Europe, South American and so on |
ASTM A106 Seamless Carbon Steel Pipe
ASTM A106/ASME SA106 is the standard specification for seamless carbon steel pipe applied for high temperature services. It includes three grades A, B and C, and common use grade is A106 Grade B. It used in different industries not only for pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.
ASTM A106 Grade B pipe is equivalent to ASTM A53 Grade B and API 5L B on chemical position and mechanical properties, in general use carbon steel and yiled strength minimum 240 MPa, tensile strength 415 Mpa.
Description
1. Standards: ASTM A106 (ASME SA106)
2. Products mainly used: apply to bending, curling and similar forming process.
3. The main products of steel / steel grade: Gr.A, Gr.B, Gr.C.
4. Specifications: diameter: 10.3 to 114.3 mm thickness: 0.8 to 12 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe.
5. Chemical composition and mechanical properties
6. JIS Number and Corrensponding Foreign Standards
Chemical Composition And Mechanical Properties
| Grade | Chemical Compositions | |||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V | |
| A106-A | ≤0.25 | 0.27-0.93 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-B | ≤0.30 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| Grade | Mechanical Properties | |||||||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||||||||
| A106-A | ≥330 | ≥205 | 30 | |||||||
| A106-B | ≥415 | ≥240 | 30 | |||||||
| A106-C | ≥485 | ≥275 | 30 | |||||||
ASTM A53 Carbon Steel Pipe & Tube
ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.
ASTM A53 seamless steel pipe chemical composition:
| Grade | Chemical Composition (%) Max. | ||||||||
| C | Mn | P | S | Cu | Ni | Cr | Mo | V | |
| A | 0.25 | 0.95 | 0.05 | 0.045 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| B | 0.30 | 1.20 | 0.05 | 0.045 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| Grade | Mechanical Properties | |
| Tensile Strength (Mpa) | Yield Strength (Mpa) | |
| A | ≥48,000 (≥330) | ≥30,000 (≥205) |
| B | ≥60,000 (≥415) | ≥35,000 (≥240) |
API 5L line pipe (Seamless and welded pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.
PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.
PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.
API 5L PSL1 steel line pipe not required to do the impact test.
For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.
For API 5L Grade X80 PSL2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.
For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.
Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.
API 5L PSL 1 / PSL 2 Chemical Composition:
| Standard | Product specification category | Steel Grade | Chemical Composite | ||||||||
| C | Mn | P | S | Si | V | Nb | Ti | CEpcm | |||
| API 5L | PSL 1 | L210 or A | ≤0.22 | ≤0.90 | ≤0.030 | ≤0.030 | ≤0.25 | ||||
| L245 or B | ≤0.28 | ≤1.20 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| L290 or X42 | ≤0.28 | ≤1.30 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| L320 or X46 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| L360 or X52 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| L390 or X56 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| L415 or X60 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | ≤0.25 | ||||||
| PSL 2 | L245R or BR | ≤0.24 | ≤1.20 | ≤0.025 | ≤0.015 | ≤0.40 | C | C | ≤0.04 | ≤0.25 | |
| L290R or X42R | ≤0.24 | ≤1.20 | ≤0.025 | ≤0.015 | ≤0.40 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.25 | ||
| L245N or BN | ≤0.24 | ≤1.20 | ≤0.025 | ≤0.015 | ≤0.40 | C | C | ≤0.04 | ≤0.25 | ||
| L290N or X42N | ≤0.24 | ≤1.20 | ≤0.025 | ≤0.015 | ≤0.40 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.25 | ||
| L320N or X46N | ≤0.24 | ≤1.40 | ≤0.025 | ≤0.015 | ≤0.40 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.25 | ||
| L360N or X52N | ≤0.24 | ≤1.40 | ≤0.025 | ≤0.015 | ≤0.45 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.25 | ||
| L390N or X56N | ≤0.24 | ≤1.40 | ≤0.025 | ≤0.015 | ≤0.45 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.25 | ||
| L415N or X60N | ≤0.24 | ≤1,40 | ≤0.025 | ≤0.015 | ≤0.45 | ≤0.10 | ≤0.05 | ≤0.04 | Negotiate | ||
| Standard | Product specification category | Steel Grade | Yield Strength | Tensile Strength |
| API 5L | PSL 1 | L210 or A | 210 | 335 |
| L245 or B | 245 | 415 | ||
| L290 or x42 | 290 | 415 | ||
| L320 or X46 | 320 | 435 | ||
| L360 or X52 | 360 | 460 | ||
| L390 or X56 | 390 | 490 | ||
| L415 or X60 | 415 | 520 | ||
| PSL 2 | L245R or BR | 245~450 | 415~760 | |
| L290R or X42R | 290~495 | 415~760 | ||
| L245N or BN | 245~450 | 415~760 | ||
| L290N or X42N | 290~495 | 415~760 | ||
| L320N or X46N | 320~525 | 435~760 | ||
| L360N or X52N | 360~530 | 460~760 | ||
| L390N or X56N | 390~545 | 490~760 | ||
| L415N or X60N | 415~565 | 520~760 |
| Steel pipe nominal outer diameter range | Steel pipe outer diameter | Coating category | Coating | Coating thickness |
| DN100~600 | 114.3~609.6 | 3PE (three-layer polyethylene) | First layer: epoxy powder (green) | 2.0~4.5mm |
| Intermediate layer: adhesive (white) | ||||
| Outermost layer: polyethylene (black) | ||||
| 2PE (two layers of polyethylene) | First layer: adhesive | 2.0~4.5mm | ||
| Outermost layer: polyethylene | ||||
| DN80~600 | 88.9~609.6 | Epoxy powder | Epoxy powder | 200~400um |
| 2FBE (Double layer epoxy powder) | First layer: epoxy powder (green) | 400~800um | ||
| Outermost layer: reinforced epoxy powder (gray green) | ||||
| DN100~600 | 114.3~609.6 | 3PP (three layers of polypropylene) | First layer: epoxy powder (green) | 2.5~3mm |
| Intermediate layer: adhesive (white) | ||||
| Outermost layer: polypropylene (white) |
| INCH | OD | API 5L ASTM A53 A106 Standard Wall Thickness | ||||||
| (MM) | SCH 10 | SCH 20 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 160 | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 1/4" | 13.7 | 2.24 | 3.02 | |||||
| 3/8" | 17.1 | 2.31 | 3.2 | |||||
| 1/2" | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | |||
| 3/4" | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | |||
| 1" | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | |||
| 1-1/4" | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | |||
| 1-1/2" | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | |||
| 2" | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | |||
| 2-1/2" | 73 | 3.05 | 5.16 | 7.01 | 9.53 | |||
| 3" | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | |||
| 3-1/2" | 101.6 | 3.05 | 5.74 | 8.08 | ||||
| 4" | 114.3 | 3.05 | 4.50 | 6.02 | 8.56 | 13.49 | ||
| 5" | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | |||
| 6" | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | |||
| 8" | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.70 | 15.09 | 23.01 |
| 10" | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 |
| 12" | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 |
| 14" | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 |
| 16" | 406 | 6.35 | 7.92 | 12.70 | 16.66 | 21.44 | 26.19 | 40.49 |
| 18" | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 |
| 20" | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 |
| 22" | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | |
| 24" | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 |
| 26" | 660 | 7.92 | 12.7 | |||||
We can produce different sizes, thicknesses, widths and materials according to your requirements
We will control the quality from part of material steel pipe, each pipe produced will be have it is own identify label, quality will check the chemical component and physical property and then provide material test certificate. Size dimension will be checked and show pictures to customer to guarantee all goods will be meet requirement.
Accept inspection from a third party designated/paid by the buyer, such as SGS, BV.
Recognized by customers in Malaysia, Indonesia, Singapore, the Philippines, Australia, Peru and the United Kingdom. We have ISO9001/18001, CE certificates.
Carbon steel pipe and tube are used in high-pressure conditions. They are highly resistant to shock and vibration, making it ideal to transport fluids. Carbon steel pipes are widely used in a number of industries, such as construction material, buidlings, bridges, transporting water and sewage, oil and gas industries, boiler and condenser tubes, high-pressure applications, and chemical processing.
- Construction material / bridges
- Transporting water and sewage
- Oil and gas industries
- Boiler and condenser tubes
- High-pressure applications
- Chemical processing
Our company is a steel supplier from China, located in Liaocheng City, one of the largest steel producers in China. The company integrates the manufacturing, wholesale, material processing and warehousing of stainless steel, aluminum, copper and carbon steel materials, and has established long-term and stable cooperative relations with many well-known steel plants, such as Tisco, Baosteel, Hongwang, Zhangpu, Liangzhong and Jiugang.Mainly products cover carbon steel tubes, stainless steel tubes, galvanized steel coil, ppgi steel coil, stainless steel coil, carbon steel coil and carbon steel profiles, gi wire, hollow anchor bar, section steel, steel rebar etc. Our company is equipped with plasma cutting machine, coil flattening equipment, laser cutting machine, 8K mirror, frosted wire drawing, filming and titanium plating equipment, which can flatten, split, shear, oil mill wire drawing, and roll oil film wire drawing on stainless steel materials, 8K mirror, titanium and other processing.
In addition, the company's characteristic business: zero-cutting, rounding, square cutting, special-shaped cutting, castings, forgings, product thicknesses up to 150mm, various special materials and specifications can be customized to steel mills.
Companies adhering to the "efficient, win-win" business philosophy, continue to provide customers with professional, quality products and value-added services, continuous progress and learning to meet customer needs. Now the company has entered the period of rapid development of global trade, looking forward to more cooperation.
Marketing Campaign
1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
3) Trade terms: FOB/CIF/CFR
4) Shipping port: Qingdao/Tianjin/Shanghai
5) Shipment: A: Length: ≤6m, loaded in 20GP Container.
B: Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm);
Size of 40GP Container (inside:12032*2352*2393mm);
Size of 40HQ Container (inside:12032*2352*2698mm).
6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size: 15-30days custom made for you.
Q1:Can you send samples?A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7:Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14:What is your working time?
A:In general, When you first contacted us, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day. Business in progress, we will be online 24 hours for you.
If you are interested in our products, you can contact me at any time and look forward to our cooperation!
